E-INK OS
EVIDENCE REGISTER · PLACEHOLDERS ARE LABELED

SHOW
THE WORK.

This register is intentionally honest. A designed placeholder is not evidence. Each row becomes a linked, dated artifact only after it is captured from a running build or physical panel.

/A01

Responsive shell capture set

Pocket and landscape profiles plus the Three.js inspection lab from build-2026-07-22. JPEG captures document UI composition, not pixel-level calibration.

CAPTURED
/A02

Refresh-mode comparison

Full clear, direct monochrome, regional update, and grayscale footage with timing overlays.

AWAITING HARDWARE
/A03

Emulator calibration sheet

Pixel pitch, reflectance, ghosting, transition timing, and viewing-angle reference frames.

SPEC IN PROGRESS
/A04

Power-policy trace

A timeline of foreground slices, bounded jobs, radio windows, and deep-sleep transitions.

AWAITING TRACE
/A05

Red-team ledger

Every material critique, evidence, severity, owner, response, and verification state.

OPEN
/A06

Device profile fixtures

Reproducible capability files for constrained SPI modules through controller-rich tablets.

PLANNED

BUILD 2026-07-22

4 BROWSER CAPTURES · HASHED

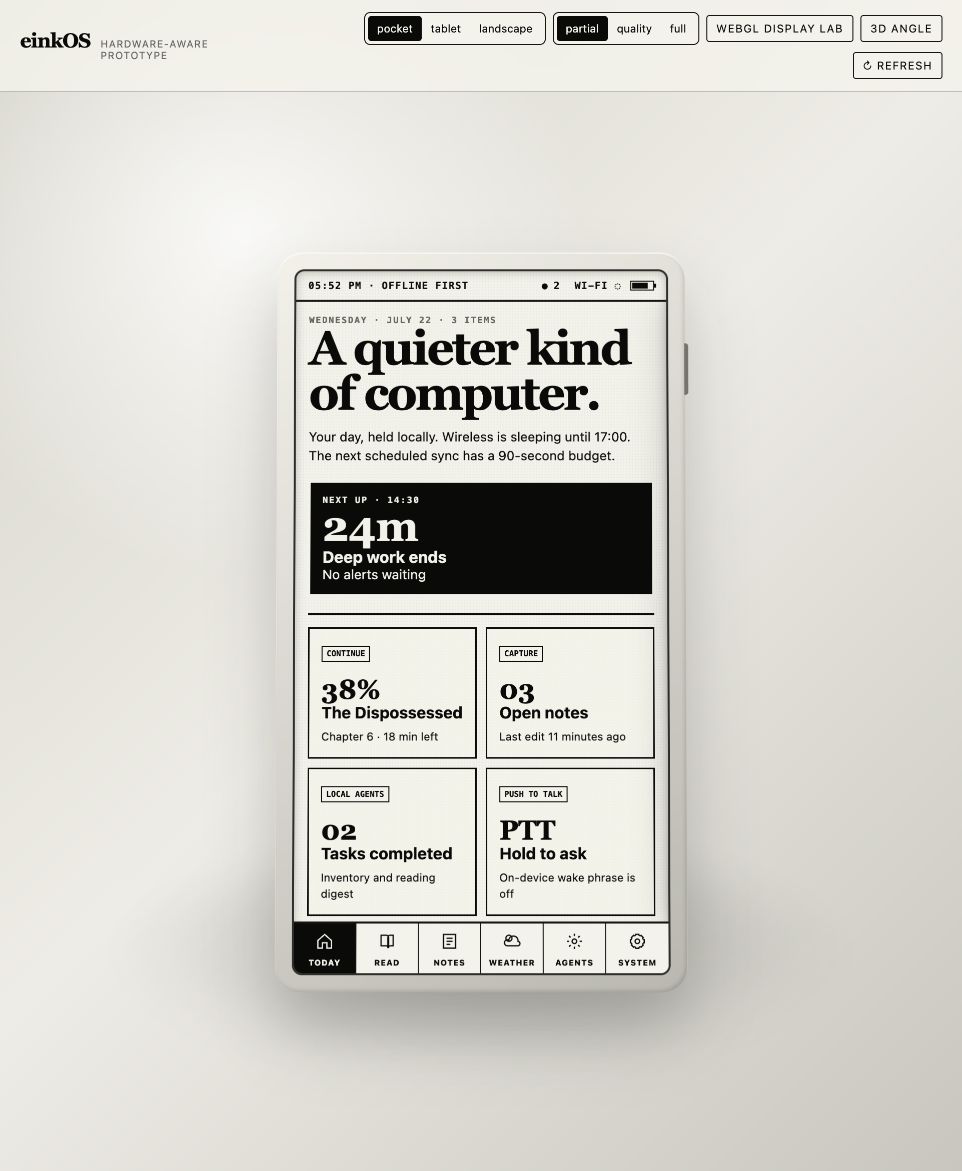

E-ink OS pocket display profile showing the home shell
Pocket shell962 × 1171 JPEG · simulated device profile

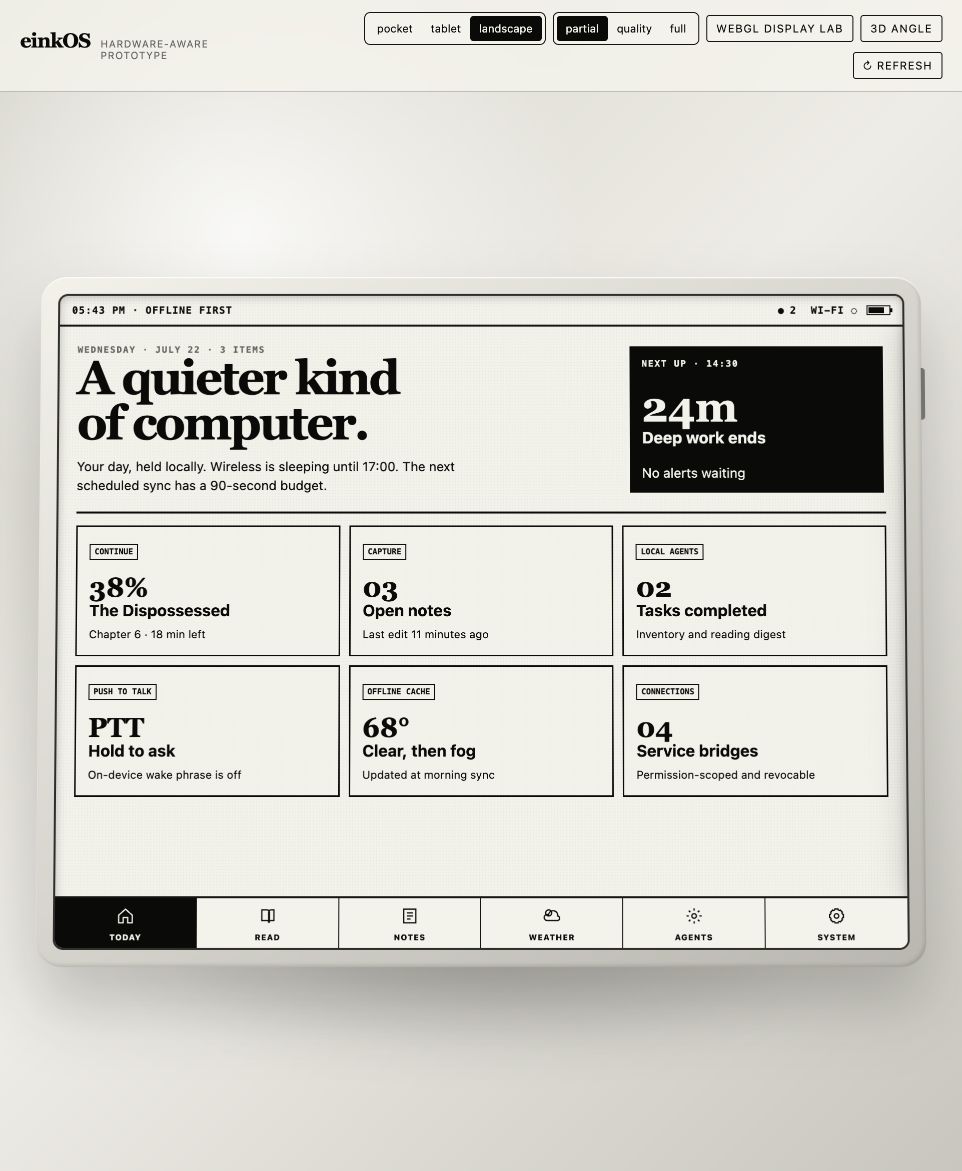

E-ink OS landscape display profile showing the home shell
Landscape shell962 × 1171 JPEG · browser viewport capture

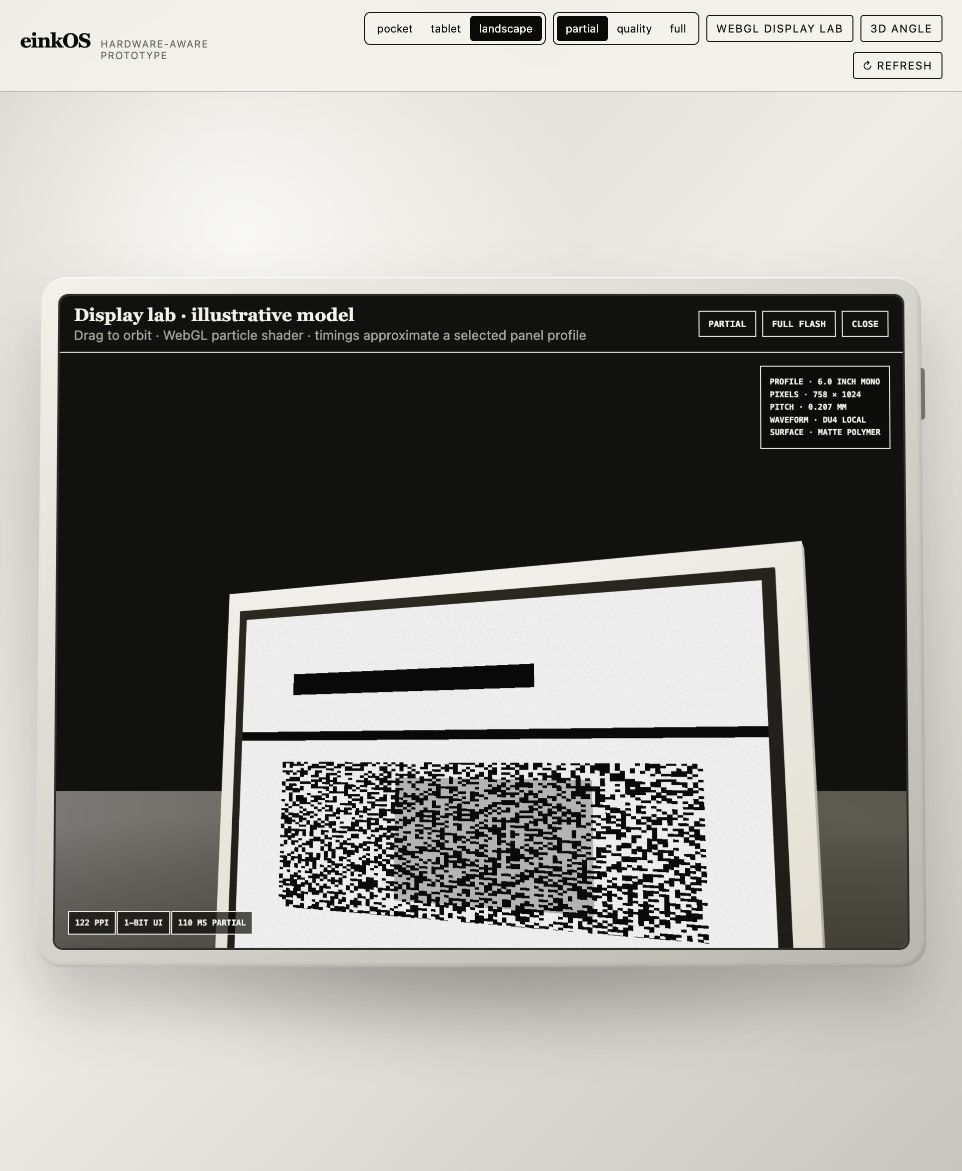

Illustrative Three.js e-ink display emulator at an oblique angle
Display labIllustrative shader · not hardware calibrated
Macro view of conceptual e-ink capsules and pigment particles in the Three.js display lab
Capsule macroConceptual pigment layer · not microscopy

READ THE CAPTURE MANIFEST →
